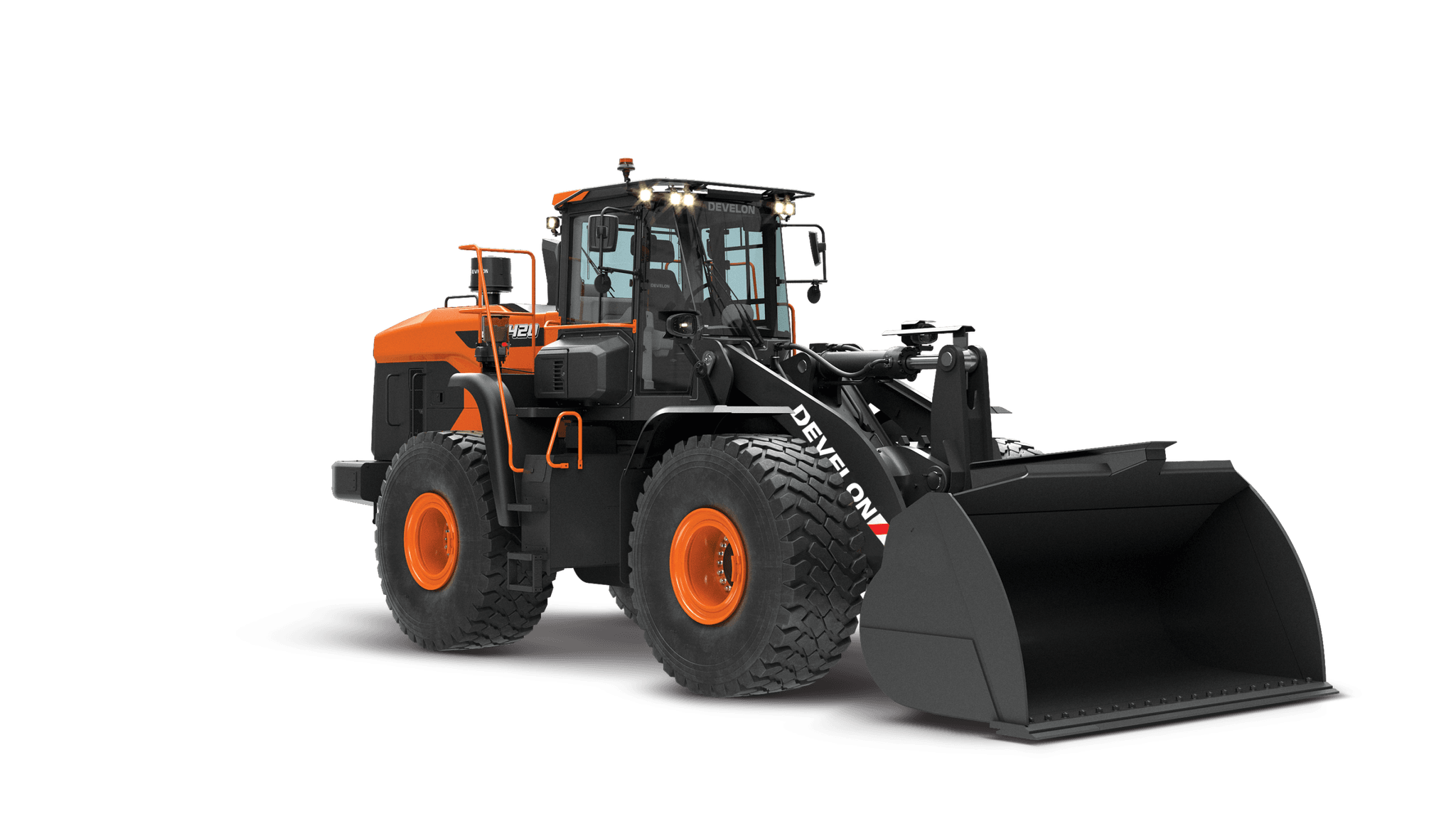

DL420-7

DL420-7

Call for Price

Price

Make:
Develon Equipment
Model:
DL420-7
Category:
Develon Equipment, New, Wheel Loaders

Specifications

Engine

  • MODEL
    DC13
  • RATED FLYWHEEL POWER (GROSS)
    345 hp @ 1800 rpm (SAE-J1995)
  • RATED HORSE POWER (NET)
    345 hp @ 1800 rpm
  • MAX. TORQUE (NET)
    1180 lbf·ft @ 1300 rpm
  • ENGINE EMISSIONS TIER (EPA)
    Tier 4
  • ENGINE AFTER TREATMENT
    CEGR+DOC+SCR with DEF
  • ENGINE MAKE
    Scania
  • ENGINE NUMBER OF CYLINDERS
    6
  • ENGINE DISPLACEMENT
    775 in³
Hydraulic System

  • MAIN PUMP: DISPLACEMENT
    8.54 in³/rev
  • SYSTEM PRESSURE: WORK
    4641 psi
  • MAIN PUMP: MAX. FLOW RATE (EACH)
    70 gal/min
  • MAIN PUMP: QUANTITY
    1
  • MAIN PUMP: MAIN RELIEF PRESSURE
    4641 psi
Undercarriage

  • TIRE SIZE
    26.5R25(L3)
  • TREAD WIDTH
    7′ 7″
Travel System/Drive Mechanism

  • TRAVEL PERFORMANCE: GRADEABILITY
    27 ° @ 51 %
  • TRAVELING PERFORMANCE: MAX. TRACTIVE EFFORT
    49384 lb
Weights

  • OPERATING WEIGHT
    51553 lb
Dimensions

  • BUCKET CAPACITY
    5.5 yd³
  • BUCKET WIDTH
    10′ 8″
  • HINGE PIN HEIGHT
    13′ 11″
  • DUMP REACH AT 45° (FULLY RAISED)
    4′ 1″
  • DUMP HEIGHT AT 45° (FULLY RAISED)
    10′ 0″
  • OVERALL HEIGHT
    12′ 0″
  • OVERALL LENGTH
    29′ 11″
  • WHEEL BASE
    11′ 6″
  • GROUND CLEARANCE
    1′ 7″
  • EXTERNAL TURNING RADIUS AT BUCKET EDGE
    22′ 11″
  • STATIC TIPPING LOAD (STRAIGHT)
    42719 lb
  • STATIC TIPPING LOAD (FULL TURN)
    37686 lb
  • BREAKOUT FORCE
    41365 lbf
  • REAR AXLE OSCILLATION
    24 °
  • DIGGING DEPTH
    3.0″
Transmission

  • SPEEDS FWD
    4
  • SPEEDS REV
    3
  • TRAVEL SPEED FORWARD – 1ST GEAR
    4.47 mph
  • TRAVEL SPEED FORWARD – 4TH GEAR
    22.62 mph
  • FINAL DRIVE
    Planetary
  • DIFFERENTIAL TYPE
    Limited Slip
Refill Capacities

  • FUEL TANK
    84.01 gal
  • COOLING SYSTEM
    14.48 gal
  • HYDRAULIC SYSTEM
    58.91 gal
  • HYDRAULIC TANK
    33.02 gal
  • DEF / AD BLUE TANK
    15.85 gal
