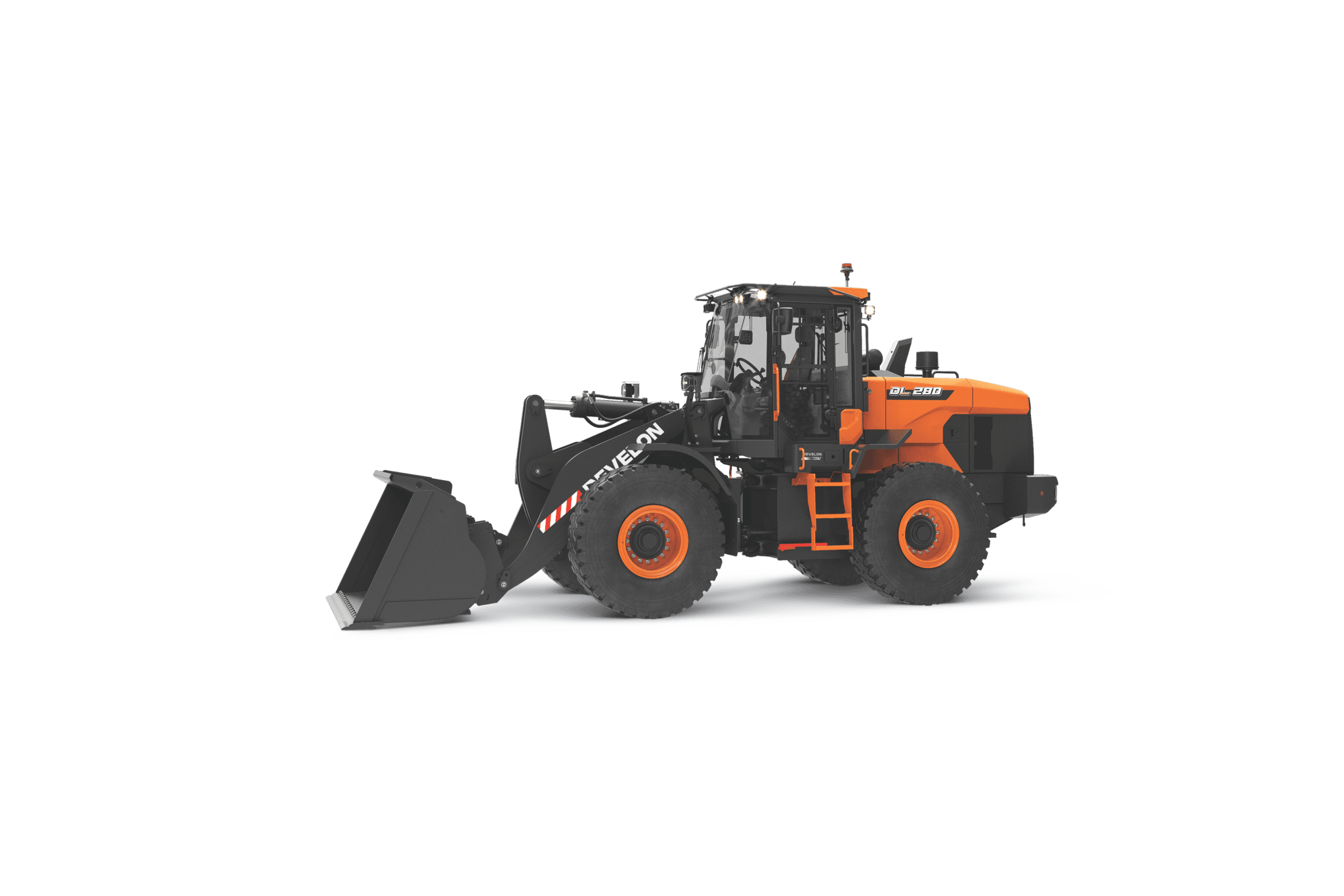

DL280-7
Call for Price
Price
Request a Quote
Trade Value
Print
Call Us
Make:
Develon Equipment
Model:
DL280-7
Category:
Develon Equipment, New, Wheel Loaders
overview
Specifications
Engine
MODEL
DEVELON DL06
RATED FLYWHEEL POWER (GROSS)
189.1 hp @ 2000 rpm
RATED HORSE POWER (NET)
189.1 hp @ 2000 rpm
MAX. TORQUE (NET)
902 lbf·ft @ 1400 rpm
ENGINE EMISSIONS TIER (EPA)
Tier 4
ENGINE AFTER TREATMENT
SCR + DOC
ENGINE MAKE
DEVELON
ENGINE NUMBER OF CYLINDERS
6
ENGINE DISPLACEMENT
360 in³
Hydraulic System
MAIN PUMP: DISPLACEMENT
7.51 in³/rev
SYSTEM PRESSURE: WORK
3843 psi
MAIN PUMP: MAX. FLOW RATE (EACH)
64.99 gal/min
MAIN PUMP: QUANTITY
1
MAIN PUMP: MAIN RELIEF PRESSURE
3843 psi
TOTAL CYCLE TIME
10.1 s (±0.4 s)
Undercarriage
TIRE SIZE
20.5R25 L3
TREAD WIDTH
6′ 8″
Travel System/Drive Mechanism
TRAVEL PERFORMANCE: GRADEABILITY
58 ° @ 30 %
TRAVELING PERFORMANCE: MAX. TRACTIVE EFFORT
30644 lb
Weights
OPERATING WEIGHT
34552 lb
Dimensions
BUCKET CAPACITY
3.66 yd³
BUCKET WIDTH
8′ 11″
HINGE PIN HEIGHT
12′ 11″
DUMP REACH AT 45° (FULLY RAISED)
3′ 9″
DUMP HEIGHT AT 45° (FULLY RAISED)
9′ 3″
OVERALL HEIGHT
11′ 0″
OVERALL LENGTH
25′ 1″
WHEEL BASE
10′ 0″
GROUND CLEARANCE
1′ 3″
EXTERNAL TURNING RADIUS AT BUCKET EDGE
20′ 1″
STATIC TIPPING LOAD (STRAIGHT)
27064 lb
STATIC TIPPING LOAD (FULL TURN)
23856 lb
BREAKOUT FORCE
32822 lbf
REAR AXLE OSCILLATION
22 °
DIGGING DEPTH
4.0″
Transmission
SPEEDS FWD
4
SPEEDS REV
3
TRAVEL SPEED FORWARD – 1ST GEAR
3.91 mph
TRAVEL SPEED FORWARD – 4TH GEAR
22.12 mph
FINAL DRIVE
Planetary
DIFFERENTIAL TYPE
Limited Slip
Refill Capacities
FUEL TANK
62.08 gal
COOLING SYSTEM
8.98 gal
HYDRAULIC SYSTEM
31.7 gal
HYDRAULIC TANK
22.45 gal
DEF / AD BLUE TANK
7.93 gal
