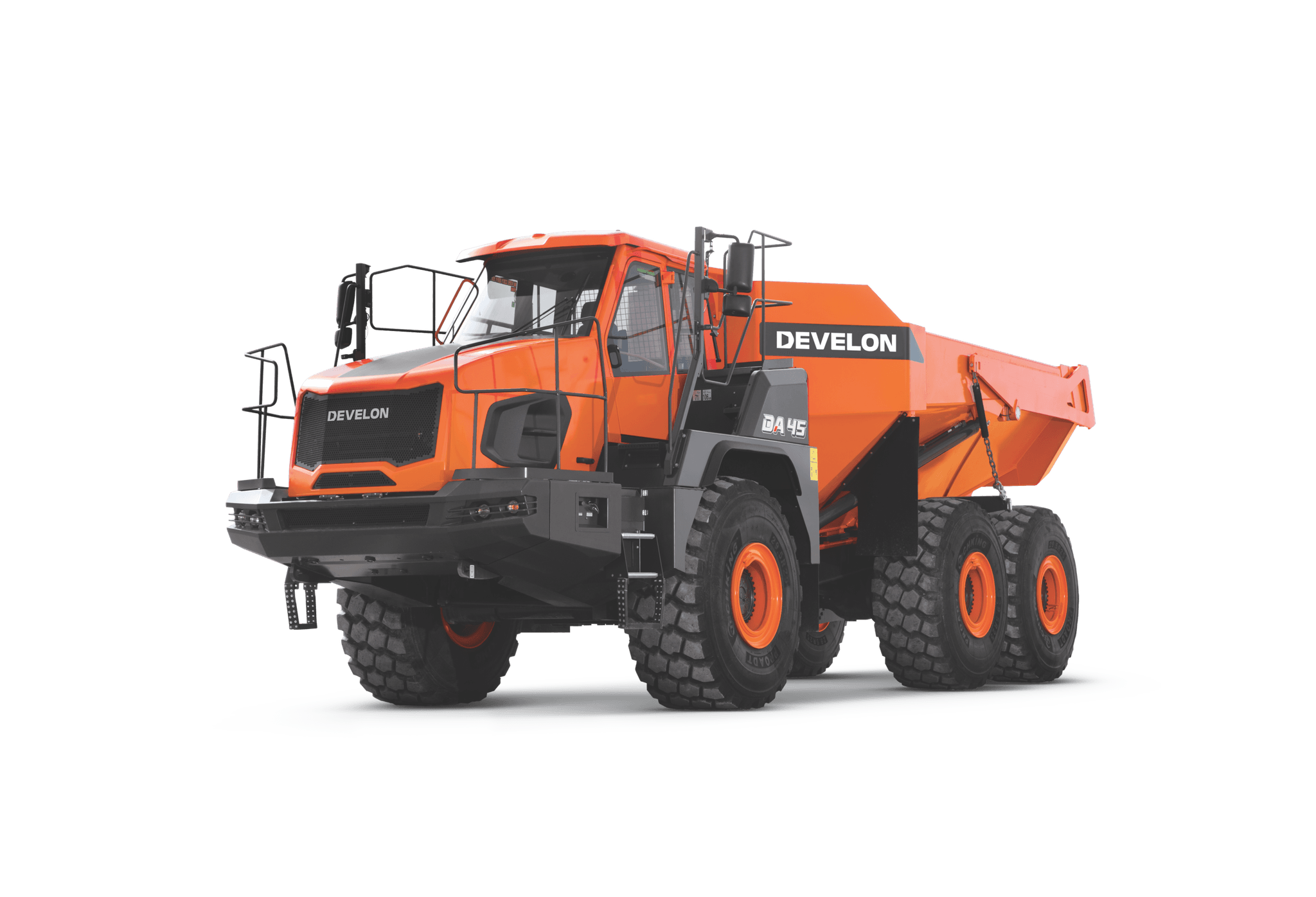

DA45-5

DA45-5

Call for Pricing

Price

Make:
Develon Equipment
Model:
DA45-5
Category:
Develon Equipment, New, Wheel Loaders

Specifications

Engine

  • MODEL
    Scania DC13
  • RATED FLYWHEEL POWER (GROSS)
    500 hp @ 2100 rpm (ISO-3046)
  • RATED HORSE POWER (NET)
    483 hp @ 2100 rpm
  • MAX. TORQUE (NET)
    1750 lbf·ft @ 1300 rpm
  • ENGINE EMISSIONS TIER (EPA)
    Tier 4
  • ENGINE AFTER TREATMENT
    SCR, EGR with DOC
  • ENGINE MAKE
    Scania
  • ENGINE NAME
    DC13
  • ENGINE NUMBER OF CYLINDERS
    6
  • ENGINE DISPLACEMENT
    775 in³
  • ASPIRATION
    Turbo intercool
Weights

  • OPERATING WEIGHT (UNLOADED)
    66360 lb
  • OPERATING WEIGHT (LOADED)
    156749 lb
  • RATED PAYLOAD
    90390 lb
  • FRONT AXLE LOAD – EMPTY
    31306 lb
  • REAR AXLE LOAD – EMPTY
    35054 lb
Dimensions

  • TOTAL HEIGHT (A)
    12′ 7″
  • OVERALL LENGTH (B)
    34′ 8″
  • TOTAL WIDTH OUTSIDE TIRES (R )
    11′ 4″
  • ARTICULATION
    45 °
  • STANDARD TIRE SIZE
    29.5 R25
  • GROUND CLEARANCE EMPTY (E )
    2′ 1″
  • LOAD OVER HEIGHT
    11′ 0″
  • TURNING RADIUS OUTSIDE WHEEL (ISO 7457)
    27′ 7″
  • CHASSIS
    7 degree down sloping
Transmission

  • TRAVEL SPEED MAX FORWARD
    34.2 mph
  • TRAVEL SPEED MAX REVERSE
    10.6 mph
  • SPEEDS FORWARD
    8
  • SPEEDS REVERSE
    4
  • GEARS WITH TORQUE CONVERTOR LOCK UP
    All Gears
  • TRAVEL SPEED FORWARD – 1ST GEAR
    3.7 mph
  • TRAVEL SPEED FORWARD – 4TH GEAR
    10.6 mph
Refill Capacities

  • FUEL TANK
    132.1 gal
  • DEF TANK
    18.5 gal
  • COOLING SYSTEM
    13.21 gal
  • TRANSMISSION
    18.23 gal
  • TANDEM HOUSING COUNT
    2
  • ENGINE OIL
    11.89 gal
  • HYDRAULIC TANK
    16.64 gal
Body

  • BODY VOLUME STRUCK WITHOUT TAILGATE
    25.6 yd³
  • BODY VOLUME HEAPED 2:1 WITHOUT TAILGATE
    31.9 yd³
  • BODY TIPPING TIME UP
    12 s
  • BODY TIPPING TIME DOWN
    10 s
  • BODY TIPPING ANGLE
    70 °
  • TIP SYSTEM
    Single Stage, Double Acting
General

  • REAR DIFFERENTIAL – TYPE
    Limited-slip
  • FRONT AXLE – DIFFERENTIAL TYPE
    Limited-slip
  • LONGITUDINAL DIFFERENTIAL TYPE
    Locking
  • RETARDER
    Exhaust brake and transmission hydraulic
  • BRAKE TYPE
    Wet Multi Disc
