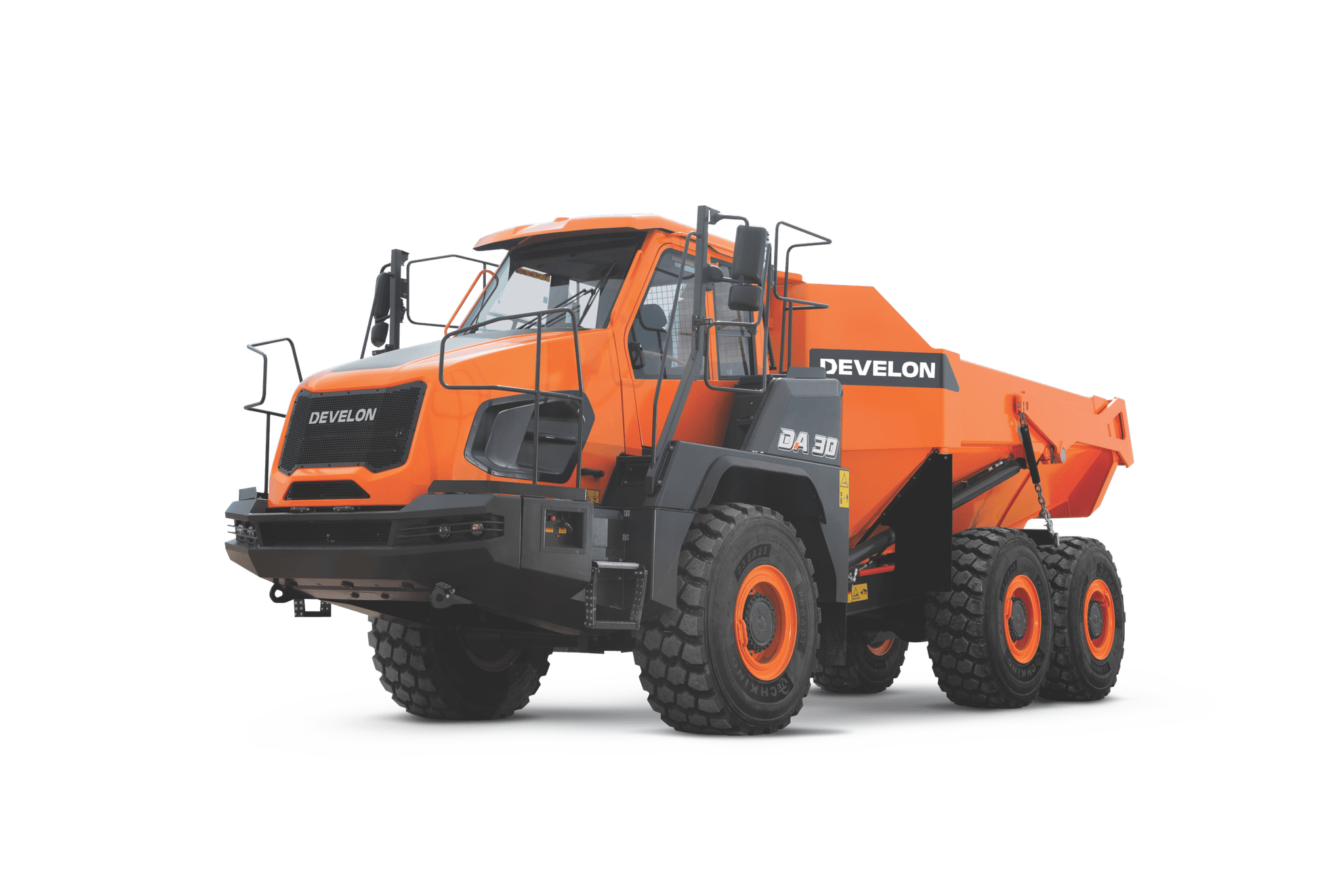

DA30-5 Image

DA30-5

Call for Pricing

Price

Make:
Develon Equipment
Model:
DA30-5
Category:
Articulated Dump Trucks, Develon Equipment, New

Specifications

Engine

  • MODEL
    DA30-5
  • RATED FLYWHEEL POWER (GROSS)
    375 hp @ 2100 rpm (ISO-3046)
  • RATED HORSE POWER (NET)
    362 hp @ 2100 rpm
  • MAX. TORQUE (NET)
    1381 lbf·ft @ 1300 rpm
  • ENGINE EMISSIONS TIER (EPA)
    Tier 4
  • ENGINE AFTER TREATMENT
    SCR, CEGR with DOC
  • ENGINE MAKE
    Scania
  • ENGINE NAME
    DC9
  • ENGINE NUMBER OF CYLINDERS
    5
  • ENGINE DISPLACEMENT
    568 in³
  • ASPIRATION
    Turbo intercool
Hydraulic System

  • MAIN PUMP: DISPLACEMENT
    8.85 in³/rev
  • MAIN PUMP: MAX. FLOW RATE (EACH)
    80.57 gal/min
  • MAIN PUMP: QUANTITY
    1
  • MAIN PUMP: MAIN RELIEF PRESSURE
    4061 psi
Weights

  • OPERATING WEIGHT (UNLOADED)
    51588 lb
  • OPERATING WEIGHT (LOADED)
    113318 lb
  • RATED PAYLOAD
    61729 lb
  • FRONT AXLE LOAD – EMPTY
    26235 lb
  • REAR AXLE LOAD – EMPTY
    25353 lb
Dimensions

  • TOTAL HEIGHT (A)
    11′ 8″
  • OVERALL LENGTH (B)
    31′ 3″
  • TOTAL WIDTH OUTSIDE TIRES (R )
    9′ 9″
  • ARTICULATION
    45 °
  • STANDARD TIRE SIZE
    23.5 R25
  • GROUND CLEARANCE EMPTY (E )
    1′ 10″
  • LOAD OVER HEIGHT
    9′ 7″
  • TURNING RADIUS OUTSIDE WHEEL (ISO 7457)
    25′ 2″
  • CHASSIS
    7 degree down sloping
Transmission

  • TRAVEL SPEED MAX FORWARD
    34.2 mph
  • TRAVEL SPEED MAX REVERSE
    9.9 mph
  • SPEEDS FORWARD
    8
  • SPEEDS REVERSE
    4
  • GEARS WITH TORQUE CONVERTOR LOCK UP
    All Gears
  • TRAVEL SPEED FORWARD – 1ST GEAR
    3.1 mph
  • TRAVEL SPEED FORWARD – 4TH GEAR
    9.3 mph
Refill Capacities

  • FUEL TANK
    88.5 gal
  • DEF TANK
    10 gal
  • COOLING SYSTEM
    11.9 gal
  • TRANSMISSION
    17.7 gal
  • TANDEM HOUSING COUNT
    2
  • HYDRAULIC SYSTEM
    55.5 gal
  • ENGINE CRANKCASE
    8.8 gal
  • ENGINE OIL
    9.51 gal
  • HYDRAULIC TANK
    32.49 gal
Body

  • BODY VOLUME STRUCK WITHOUT TAILGATE
    17.8 yd³
  • BODY VOLUME HEAPED 2:1 WITHOUT TAILGATE
    22 yd³
  • BODY TIPPING TIME UP
    12 s
  • BODY TIPPING TIME DOWN
    10 s
  • BODY TIPPING ANGLE
    70 °
  • TIP SYSTEM
    Single Stage, Double Acting
General

  • REAR DIFFERENTIAL – TYPE
    Limited-slip
  • FRONT AXLE – DIFFERENTIAL TYPE
    Limited-slip
  • LONGITUDINAL DIFFERENTIAL TYPE
    Locking
  • RETARDER
    Exhaust brake and transmission hydraulic
  • BRAKE TYPE
    Wet Multi Disc
