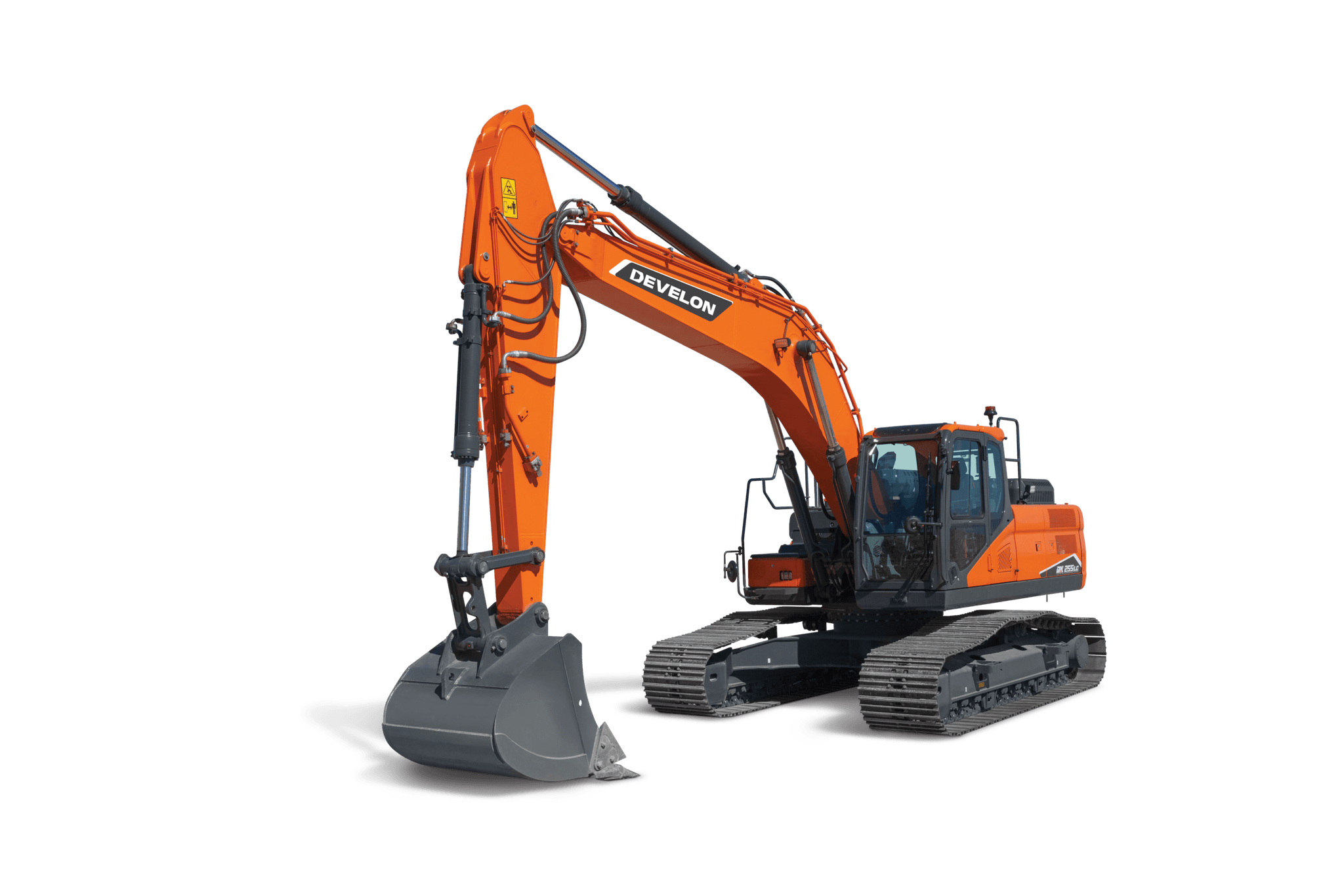

DX255LC-7
Call for Pricing
Price
Request a Quote
Trade Value
Print
Call Us
Make:
Develon Equipment
Model:
DX255LC-7
Category:
Crawler Excavator, Develon Equipment, New
overview
Specifications
Engine
MODEL
DL06P
RATED FLYWHEEL POWER (GROSS)
189 hp @ 1900 rpm
RATED HORSE POWER (NET)
—
ENGINE EMISSIONS TIER (EPA)
Tier 4
ENGINE AFTER TREATMENT
DOC+DPF+SCR
ENGINE MAKE
DEVELON
ENGINE DISPLACEMENT
359 in³
Hydraulic System
MAIN PUMP: DISPLACEMENT
7.02 in³/rev
MAIN PUMP: MAX. FLOW RATE (EACH)
57.85 gal/min
MAIN PUMP: QUANTITY
2
Undercarriage
UPPER ROLLERS: QUANTITY PER SIDE
2
LOWER ROLLERS: QUANTITY PER SIDE
10
TRACK LENGTH
15′ 2″
TRACK LINK: TRACK GAUGE
8′ 6″
GROUND CLEARANCE
1′ 5″
GROUND PRESSURE
80.92 psi
Swing Mechanism
SWING PERFORMANCE: MAX SWING TORQUE
71462 lbf·ft
SWING PERFORMANCE: MAX SWING SPEED (AT EFFICIENCY)
10.01 rpm
Travel System/Drive Mechanism
TRAVEL PERFORMANCE: TRACTION FORCE (HIGHEST VALUE)
1952879 lbf @ 100
TRAVEL PERFORMANCE: TRAVELING SPEED – LOW (XXX/)
1.99 mph
TRAVEL PERFORMANCE: TRAVELING SPEED – HIGH (/XXX)
3.48 mph
TRAVEL PERFORMANCE: GRADEABILITY
35 ° @ 70 %
Weights
OPERATING WEIGHT
57761 lb
STANDARD BOOM LENGTH
19′ 4″
STANDARD ARM LENGTH
9′ 10″
STANDARD BUCKET SIZE
1.44 yd³
SHOE WIDTH
2′ 7″
Dimensions
SHIPPING HEIGHT – HOSE (WITH ATTACHMENT)
10′ 5″
SHIPPING LENGTH (WITHOUT ATTACHMENT)
33′ 0″
SHIPPING WIDTH (STANDARD)
11′ 1″
OVERALL HEIGHT OVER CAB
9′ 9″
Working Range
MAX DIGGING REACH (GROUND)
32′ 9″
MAX DIGGING HEIGHT
31′ 10″
MAX DIGGING DEPTH
22′ 4″
MAX LOADING HEIGHT
23′ 0″
Digging Force (ISO)
ARM DIGGING FORCE – PRESSURE UP
2878 lbf
BUCKET DIGGING FORCE – PRESSURE UP
4024 lbf
ARM DIGGING FORCE – NORMAL
2720 lbf
Refill Capacities
FUEL TANK
110.95 gal
HYDRAULIC SYSTEM
73.97 gal
ENGINE COOLANT
7.4 gal
ENGINE OIL
7.13 gal
HYDRAULIC TANK
63.4 gal
Environment
NOISE LEVEL: GUARANTEED SOUND POWER LEVEL
103 dBA
NOISE LEVEL: OPERATOR
70 dBA
