Specifications
Engine
-
- MODEL

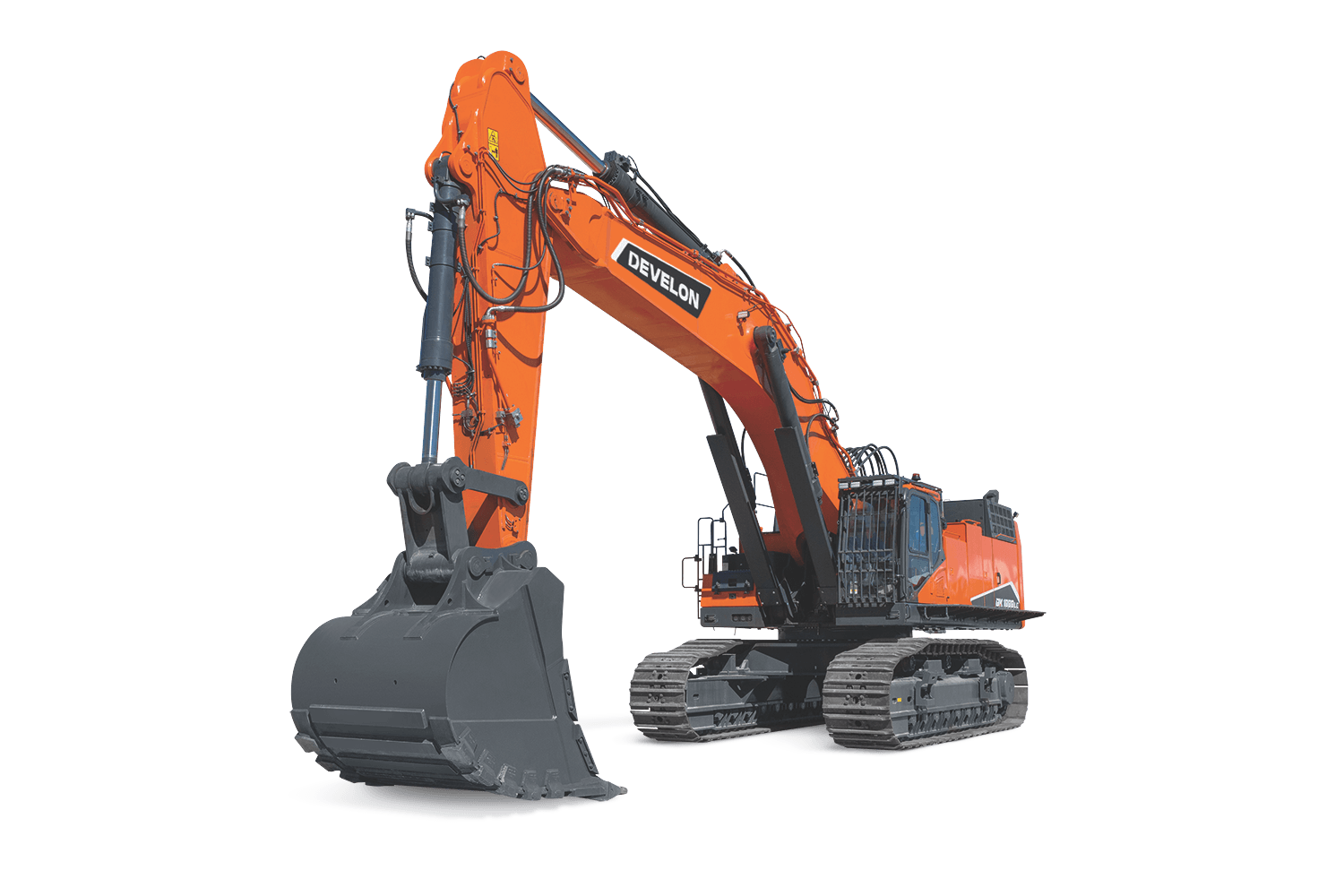

- DX1000LC-7
-
- RATED FLYWHEEL POWER (GROSS)
- 628.9 hp @ 2000 rpm
-
- RATED HORSE POWER (NET)
- 616.6 hp @ 2100 rpm
-
- MAX. TORQUE (NET)
- 2178 lbf·ft @ 1300 rpm
-
- ENGINE EMISSIONS TIER (EPA)
- Tier 4
-
- ENGINE AFTER TREATMENT
- DOC+DPF+SCR with DEF
-
- ENGINE MAKE
- Perkins
-
- ENGINE NAME
- Perkins 2806J
-
- ENGINE NUMBER OF CYLINDERS
- 6
-
- ENGINE DISPLACEMENT
- 1105 in³
Hydraulic System
-
- MAIN PUMP: DISPLACEMENT
- 17.09 in³/rev
-
- MAIN PUMP: MAX. FLOW RATE (EACH)
- 138.16 gal/min
-
- MAIN PUMP: QUANTITY
- 3
-
- MAIN PUMP: MAIN RELIEF PRESSURE
- 5221 psi
Undercarriage
-
- UPPER ROLLERS: QUANTITY PER SIDE
- 3
-
- LOWER ROLLERS: QUANTITY PER SIDE
- 9
-
- TRACK LENGTH
- 20′ 9″
-
- TRACK LINK: TRACK GAUGE
- 11′ 7″
-
- GROUND CLEARANCE
- 2′ 9″
-
- GROUND PRESSURE
- 14.37 psi
Swing Mechanism
-
- SWING PERFORMANCE: MAX SWING TORQUE
- 284474 lbf·ft
-
- SWING PERFORMANCE: MAX SWING SPEED (AT EFFICIENCY)
- 6.1 rpm
Travel System/Drive Mechanism
-
- TRAVEL PERFORMANCE: TRACTION FORCE (HIGHEST VALUE)
- 17692464 lbf
-
- TRAVEL PERFORMANCE: TRAVELING SPEED – LOW (XXX/)
- 1.62 mph
-
- TRAVEL PERFORMANCE: TRAVELING SPEED – HIGH (/XXX)
- 2.8 mph
-
- TRAVEL PERFORMANCE: GRADEABILITY
- 35 ° @ 70 %
Weights
-
- OPERATING WEIGHT
- 220903 lb
-
- STANDARD BOOM LENGTH
- 27′ 6″
-
- STANDARD ARM LENGTH
- 12′ 3″
-
- SHOE WIDTH
- 2′ 11″
Dimensions
-
- SHIPPING HEIGHT – HOSE (WITH ATTACHMENT)
- 18′ 2″
-
- SHIPPING LENGTH (WITHOUT ATTACHMENT)
- 47′ 8″
-
- SHIPPING WIDTH (STANDARD)
- 11′ 3″
-
- OVERALL HEIGHT OVER CAB
- 11′ 10″
Working Range
-
- MAX DIGGING REACH (GROUND)
- 45′ 11″
-
- MAX DIGGING HEIGHT
- 45′ 4″
-
- MAX DIGGING DEPTH
- 28′ 10″
-
- MAX LOADING HEIGHT
- 30′ 11″
Digging Force (ISO)
-
- ARM DIGGING FORCE – PRESSURE UP
- 8257 lbf
-
- BUCKET DIGGING FORCE – PRESSURE UP
- 9658 lbf
Refill Capacities
-
- FUEL TANK
- 290.59 gal
-
- HYDRAULIC SYSTEM
- 232.47 gal
-
- ENGINE COOLANT
- 27.69 gal
-
- ENGINE OIL
- 17.17 gal
Environment
-
- NOISE LEVEL: GUARANTEED SOUND POWER LEVEL
- 109 dBA
-
- NOISE LEVEL: OPERATOR
- 71 dBA
