Specifications
Engine
-
- MODEL

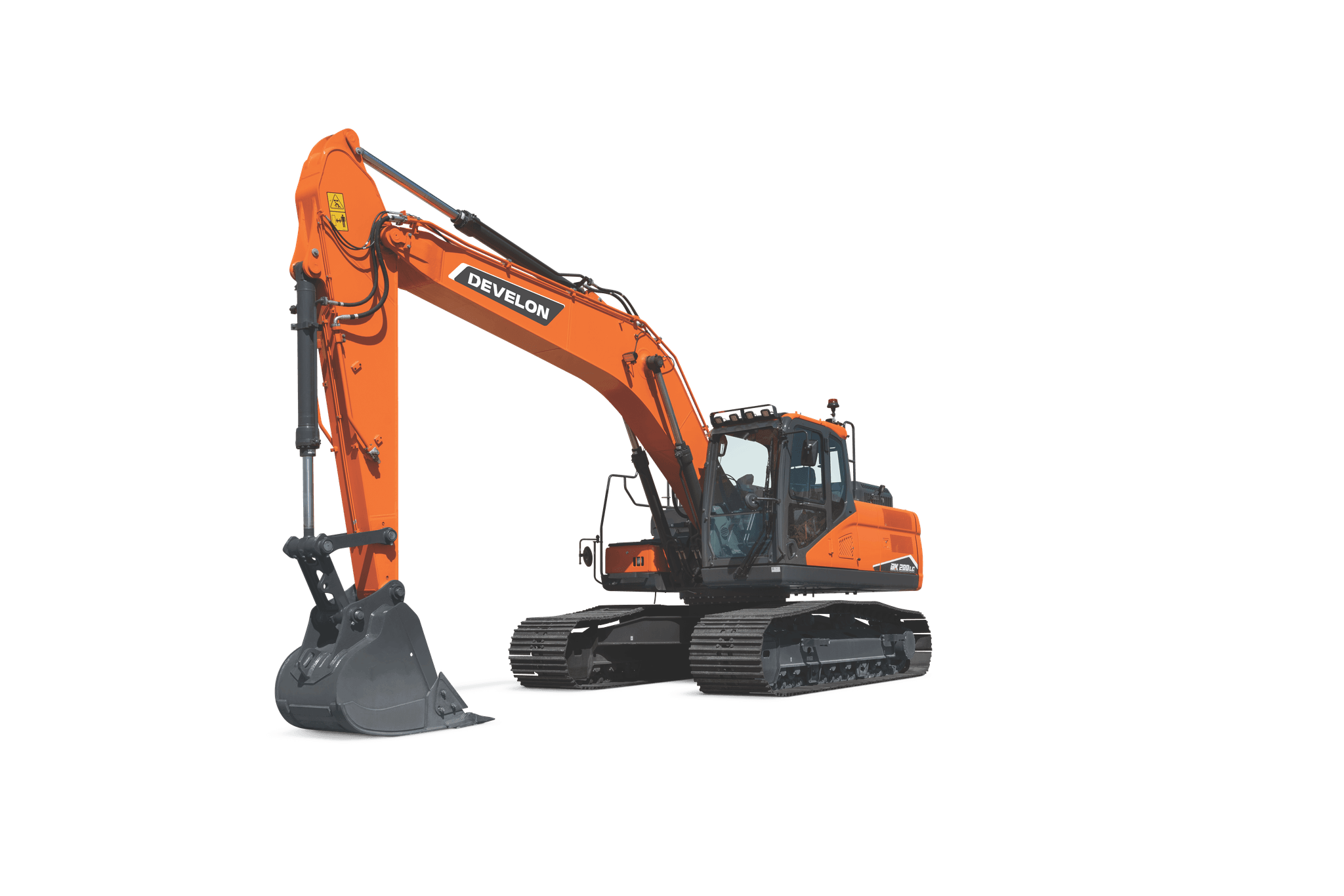

- DX200LC-7
-
- RATED FLYWHEEL POWER (GROSS)
- 147.5 hp @ 2000 rpm (SAE-J1995)
-
- RATED HORSE POWER (NET)
- 138.1 hp @ 2000 rpm
-
- MAX. TORQUE (NET)
- 413 lbf·ft @ 1400 rpm
-
- ENGINE EMISSIONS TIER (EPA)
- Tier 5
-
- ENGINE AFTER TREATMENT
- CEGR+DOC+DPF+SCR with DEF
-
- ENGINE MAKE
- Perkins
-
- ENGINE NUMBER OF CYLINDERS
- 4
-
- ENGINE DISPLACEMENT
- 269 in³
Hydraulic System
-
- MAIN PUMP: DISPLACEMENT
- 6.47 in³/rev
-
- MAIN PUMP: MAX. FLOW RATE (EACH)
- 56 gal/min
-
- MAIN PUMP: QUANTITY
- 2
-
- MAIN PUMP: MAIN RELIEF PRESSURE
- 4978 psi
Undercarriage
-
- UPPER ROLLERS: QUANTITY PER SIDE
- 2
-
- LOWER ROLLERS: QUANTITY PER SIDE
- 8
-
- TRACK LENGTH
- 14′ 7″
-
- TRACK LINK: TRACK GAUGE
- 7′ 10″
-
- GROUND CLEARANCE
- 1′ 5″
-
- GROUND PRESSURE
- 5.26 psi
Swing Mechanism
-
- SWING PERFORMANCE: MAX SWING TORQUE
- 63000 lbf·ft
-
- SWING PERFORMANCE: MAX SWING SPEED (AT EFFICIENCY)
- 11 rpm
Travel System/Drive Mechanism
-
- TRAVEL PERFORMANCE: TRACTION FORCE (HIGHEST VALUE)
- 60715 lbf
-
- TRAVEL PERFORMANCE: TRAVELING SPEED – LOW (XXX/)
- 1.86 mph
-
- TRAVEL PERFORMANCE: TRAVELING SPEED – HIGH (/XXX)
- 3.48 mph
-
- TRAVEL PERFORMANCE: GRADEABILITY
- 35 ° @ 70 %
Weights
-
- OPERATING WEIGHT
- 51147 lb
-
- STANDARD BOOM LENGTH
- 18′ 8″
-
- STANDARD ARM LENGTH
- 7′ 10″
-
- STANDARD BUCKET SIZE
- 1.2 yd³
-
- SHOE WIDTH
- 2′ 7″
Dimensions
-
- SHIPPING HEIGHT – HOSE (WITH ATTACHMENT)
- 10′ 2″
-
- SHIPPING LENGTH (WITHOUT ATTACHMENT)
- 31′ 5″
-
- SHIPPING WIDTH (STANDARD)
- 10′ 5″
-
- OVERALL HEIGHT OVER CAB
- 9′ 9″
Working Range
-
- MAX DIGGING REACH (GROUND)
- 30′ 5″
-
- MAX DIGGING HEIGHT
- 30′ 11″
-
- MAX DIGGING DEPTH
- 20′ 0″
-
- MAX LOADING HEIGHT
- 9′ 9″
Digging Force (ISO)
-
- ARM DIGGING FORCE – PRESSURE UP
- 18077 lbf
-
- BUCKET DIGGING FORCE – PRESSURE UP
- 25794 lbf
-
- ARM DIGGING FORCE – NORMAL
- 24030 lbf
Refill Capacities
-
- FUEL TANK
- 101.44 gal
-
- HYDRAULIC SYSTEM
- 51.78 gal
-
- ENGINE COOLANT
- 7.16 gal
-
- ENGINE OIL
- 3.96 gal
-
- HYDRAULIC TANK
- 31.96 gal
Environment
-
- NOISE LEVEL: GUARANTEED SOUND POWER LEVEL
- 102 dBA
-
- NOISE LEVEL: OPERATOR
- 70 dBA
Lift Capacity
-
- LIFTING CAPACITY OVER FRONT @ HORIZONTAL DISTANCE – 10 FT ABOVE GROUND
- 14260 lb @ 20 ft
-
- LIFTING CAPACITY OVER FRONT @ HORIZONTAL DISTANCE – GROUND LEVEL
- 16430 lb @ 20 ft
-
- LIFTING CAPACITY OVER FRONT @ HORIZONTAL DISTANCE – 10 FT BELOW GROUND
- 13880 lb @ 20 ft
-
- LIFTING CAPACITY OVER FRONT @ HORIZONTAL DISTANCE – 3M ABOVE GROUND
- 14290 lb @ 19.68 ft
-
- LIFTING CAPACITY OVER FRONT @ HORIZONTAL DISTANCE – 3M BELOW GROUND
- 13830 lb @ 19.68 ft
