Specifications
Engine
-
- MODEL

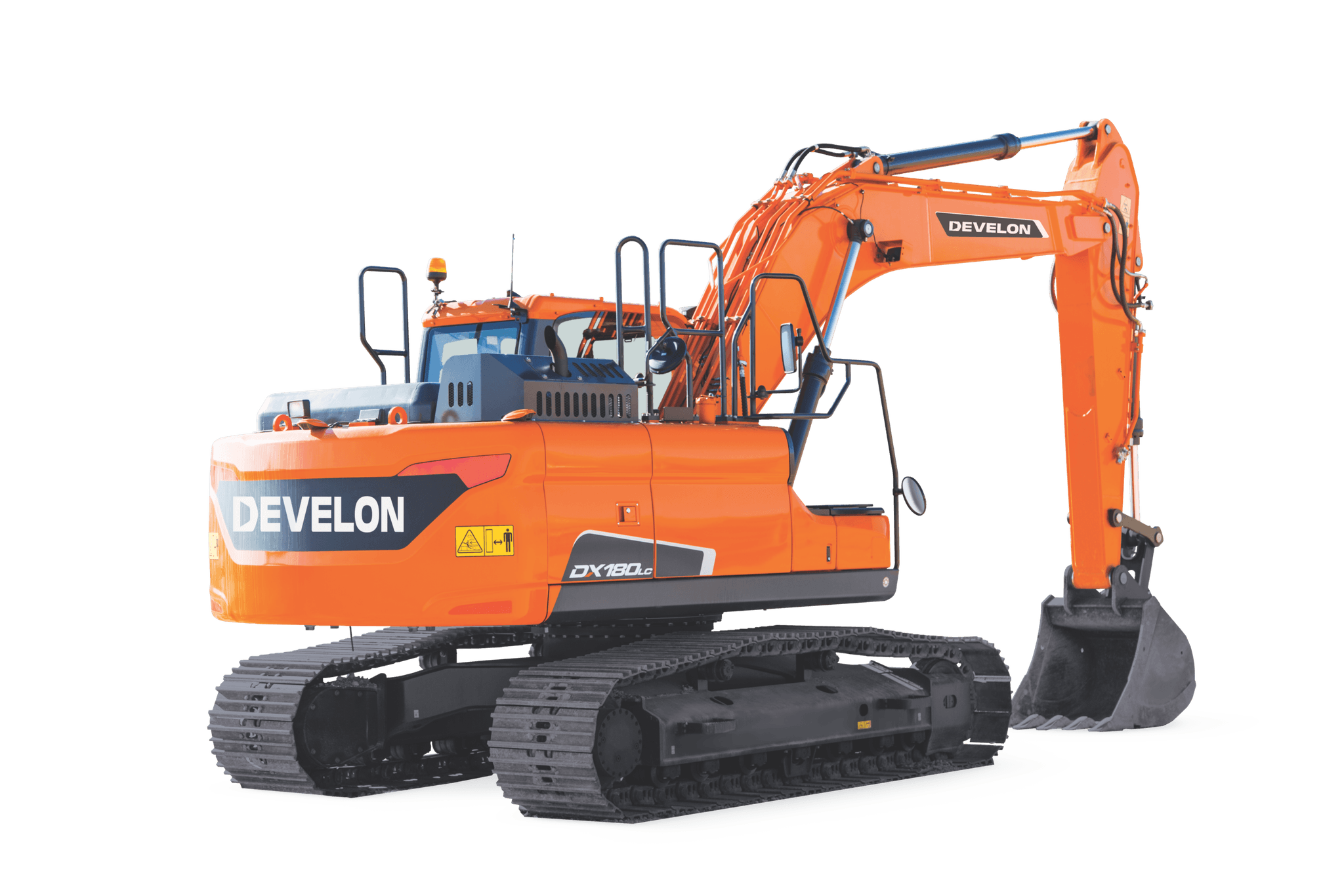

- DX180LC-5
-
- RATED FLYWHEEL POWER (GROSS)
- 131.3 hp @ 2000 rpm
-
- RATED HORSE POWER (NET)
- 127.3 hp @ 2000 rpm
-
- MAX. TORQUE (NET)
- 391 lbf·ft @ 1400 rpm
-
- ENGINE EMISSIONS TIER (EPA)
- Tier 4
-
- ENGINE AFTER TREATMENT
- CEGR+DOC+SCR with DEF
-
- ENGINE MAKE
- Perkins
-
- ENGINE NAME
- Perkins 1204F
-
- ENGINE NUMBER OF CYLINDERS
- 4
-
- ENGINE DISPLACEMENT
- 269 in³
Hydraulic System
-
- MAIN PUMP: DISPLACEMENT
- 4.64 in³/rev
-
- MAIN PUMP: MAX. FLOW RATE (EACH)
- 40.15 gal/min
-
- MAIN PUMP: QUANTITY
- 2
Undercarriage
-
- UPPER ROLLERS: QUANTITY PER SIDE
- 2
-
- LOWER ROLLERS: QUANTITY PER SIDE
- 7
-
- TRACK LENGTH
- 13′ 4″
-
- TRACK LINK: TRACK GAUGE
- 7′ 2″
-
- GROUND CLEARANCE
- 1′ 6″
-
- GROUND PRESSURE
- 5.4 psi
Swing Mechanism
-
- SWING PERFORMANCE: MAX SWING TORQUE
- 46653 lbf·ft
-
- SWING PERFORMANCE: MAX SWING SPEED (AT EFFICIENCY)
- 10.52 rpm
Travel System/Drive Mechanism
-
- TRAVEL PERFORMANCE: TRACTION FORCE (HIGHEST VALUE)
- 1404704 lbf @ 100
-
- TRAVEL PERFORMANCE: TRAVELING SPEED – LOW (XXX/)
- 1.93 mph
-
- TRAVEL PERFORMANCE: TRAVELING SPEED – HIGH (/XXX)
- 3.17 mph
-
- TRAVEL PERFORMANCE: GRADEABILITY
- 70 °
Weights
-
- OPERATING WEIGHT
- 43224 lb
-
- STANDARD BOOM LENGTH
- 17′ 0″
-
- STANDARD ARM LENGTH
- 8′ 6″
-
- STANDARD BUCKET SIZE
- 0.92 yd³
-
- SHOE WIDTH
- 2′ 3″
Dimensions
-
- SHIPPING HEIGHT – HOSE (WITH ATTACHMENT)
- 9′ 4″
-
- SHIPPING LENGTH (WITHOUT ATTACHMENT)
- 28′ 9″
-
- SHIPPING WIDTH (STANDARD)
- 9′ 6″
-
- OVERALL HEIGHT OVER CAB
- 9′ 7″
Working Range
-
- MAX DIGGING REACH (GROUND)
- 29′ 7″
-
- MAX DIGGING HEIGHT
- 30′ 1″
-
- MAX DIGGING DEPTH
- 20′ 0″
-
- MAX LOADING HEIGHT
- 21′ 3″
Digging Force (ISO)
-
- ARM DIGGING FORCE – PRESSURE UP
- 2091 lbf
-
- BUCKET DIGGING FORCE – PRESSURE UP
- 2945 lbf
-
- ARM DIGGING FORCE – NORMAL
- 1956 lbf
Refill Capacities
-
- FUEL TANK
- 77.14 gal
-
- HYDRAULIC SYSTEM
- 55.48 gal
-
- ENGINE COOLANT
- 6.6 gal
-
- ENGINE OIL
- 2.11 gal
-
- HYDRAULIC TANK
- 47.82 gal
Environment
-
- NOISE LEVEL: GUARANTEED SOUND POWER LEVEL
- 102 dBA
-
- NOISE LEVEL: OPERATOR
- 68 dBA
Lift Capacity
-
- LIFTING CAPACITY OVER FRONT @ HORIZONTAL DISTANCE – 10 FT ABOVE GROUND
- 15270 lb @ 15 ft
-
- LIFTING CAPACITY OVER FRONT @ HORIZONTAL DISTANCE – GROUND LEVEL
- 18270 lb @ 15 ft
-
- LIFTING CAPACITY OVER FRONT @ HORIZONTAL DISTANCE – 10 FT BELOW GROUND
- 16320 lb @ 15 ft
